Verified View (VV) / Accurate Visual Representation (AVR) / Verified View Montage (VVM) / Type 4 Visualisation

A Verified View (also called an Accurate Visual Representation (AVR), Verified View Montage (VVM) or Visualisation Type 4 by the Landscape Institute) is an extremely accurate representation of a proposed development that can be independently verified by a third party. They are usually created as evidence to be used for planning applications when normal visualisations don't supply the level of accuracy required. A verified view is the most accurate visual description of a proposed site that it is possible to create (the others in levels of accuracy being napkin sketch, artist impression, mass model, visualisation and rendered image).

At its core a verified view must be able to be independently verified, this means that it must be reproducible by other competent persons following the documented process listed in the Verified View Method Statement. For this to be possible each step of the process must be documented up until the finalised visualisation.

The process for producing a verified view should follow these steps

Architects

• Project design is completed, building modelled in 3D
• Viewpoints are agreed with planning department
• Required direction and fields of view are specified
• Site is visited and photographed to show exact view required
• Mass model of building added to terrain/building model and views output from required viewpoints
• Note : These previous two steps aren't essential but make it easy to spot issues before the verified view is started. Contact numbers for private property can be collected and access arranged. It also helps the photographer work out how tall the planned building is from each location
• Data is supplied to photographer and they are instructed to proceed



Photographer

• Complete pre-visualisation workflow and compile a shoot itinerary
• Create a field of view study to confirm view direction and width, supply to client for approval
• Site visited and viewpoint is photographed under suitable lighting & weather conditions
• Tripod location is marked (survey pin, paint, fixed geographic object etc.)
• Produce Documentation Images of the camera setup, tripod location and survey point
• Low-resolution proof images are provided to architects/clients and a photograph is selected from those available
• Produce Verified View Method Statement based upon the selected photographs
• Provide site documentation to the surveyor including pin locations, selected images (A3 size), kmz file etc via secure download location
• Provide high resolution selected image and image data (time date, lens, rise, camera used etc.) to visualiser via secure website download



Surveyor

• Locate the survey pin and set up the total station over it at the same height as the camera or near it so that the view seen isn’t vastly different
• Survey the view shown in selected image using fixed points in view
• Mark-up A3 print of selected view with point cloud numbers generated by total station
• Survey the survey pin if total station isn’t positioned above it
• Produce a point cloud for each viewpoint as a dwg (if requested)
• Produce a spreadsheet of point cloud x,y,z coordinates and locations description (vp04, point 04012, x,y,z, lower left corner of window frame)
• Supply point cloud information and spreadsheet to visualiser
• Produce Methodology and Evidence document that includes spreadsheet with point cloud data included



Visualiser

• Imports Point Cloud, Selected Image, 3D building Model and surrounding terrain/buildings into software
• Create virtual camera to mimic camera used (type of lens, f-stop, amount of rise etc.) at surveyed viewpoint location
• Align photograph to point cloud and terrain/building model
• Position 3D building in geographically correct location
• Set virtual world date and time to match when photograph taken (sun must be in the correct position for shadows to match photograph)
• Configure the light quality to match that on day (bright sunlight with high-contrast shadows, diffuse cloud with soft edged shadows, heavy overcast with minimal shadow) see Documentation Images
• Render building depending upon AVR level required (0-3 see below)
• Merge building and photograph into one image (make sure that objects in front of building obscure building (tree branches, chain-link fence etc.)) to create a photomontage of the proposed view
• Produce Methodology and Evidence Document that includes final photomontages


• Existing and proposed images/photomontages used in VIA document and Methodology and Evidence Document supplied as supporting evidence

This is a very simplified version of the verified view workflow. Once it is complete the photographer, surveyor and visualisers can supply the client with the necessary data, photographs and photomontages enabling the client to define the photomontage as a verified view. If required the method statements and evidence can be supplied to third parties allowing them to recreate the final photomontage for verification.

The photographers Methodology and Evidence statement is usually the longest as they need to provide the most information to those working further down the chain. For example my current Verified View Method Statement is provided as a PDF in A3 format and contain 3 pages of local area images, 15 pages of supporting information and 3 pages of documentation for each viewpoint.

Looking at the above list you can see how the different disciplines need to work together and provide each other with information regarding their working practices. Wherever the verified view is located, whether it be a public park, long distance path or high street the photographer and surveyor will need to be able to set up a tripod and be undisturbed for up to an hour to complete their work. This needs to be taken into consideration when choosing viewpoints for verified views as it excludes roads, pedestrian crossings, railways (illegal to trespass on anyway) and many shopping centres/privately owned public spaces. Other locations that require permission "and a separate fee" to shoot from include but is not limited to, London Underground, Docklands Light Railway, Overground Stations and Royal Parks.

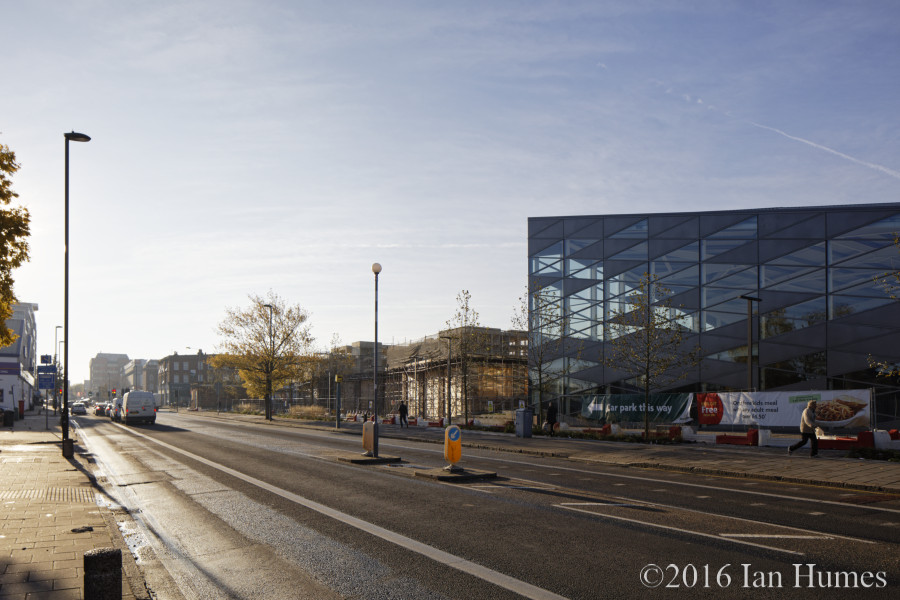

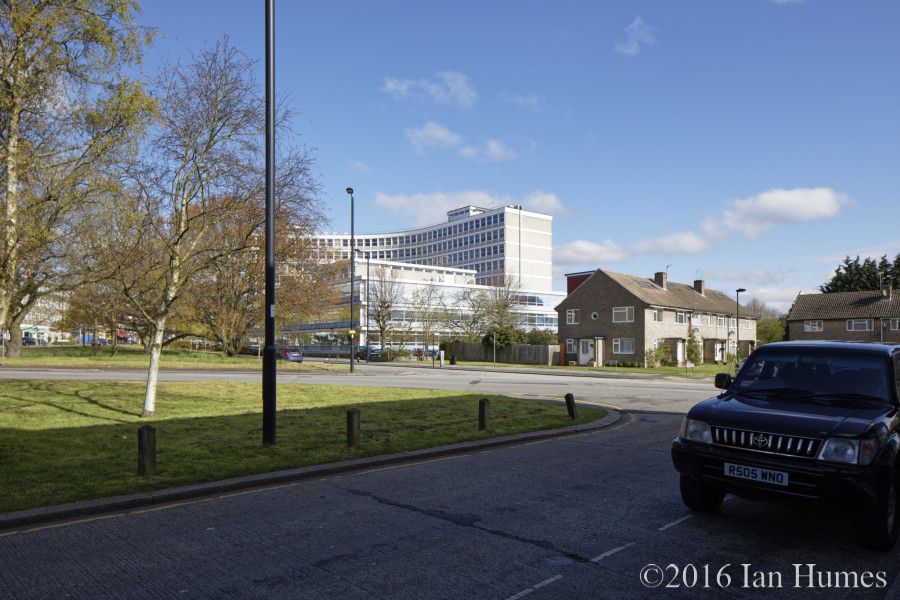

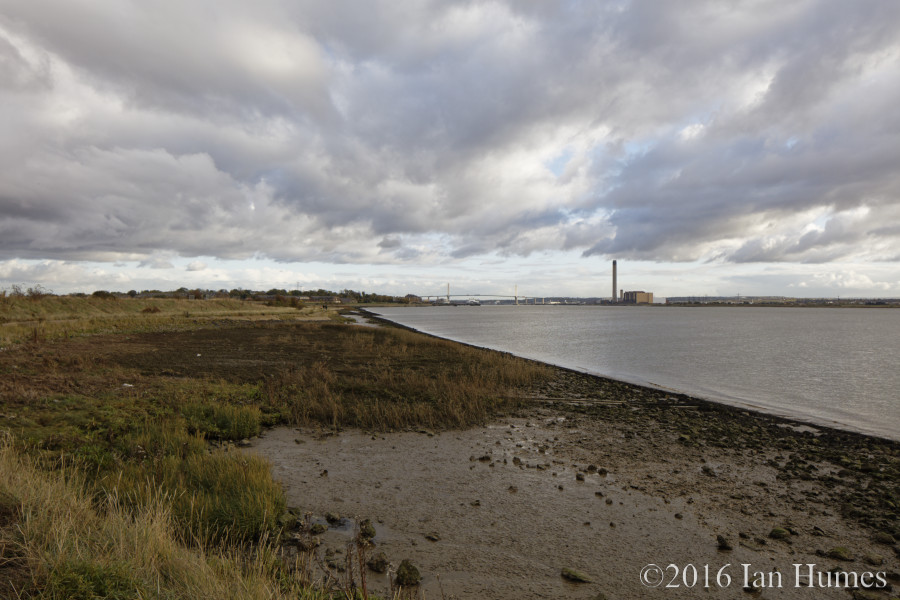

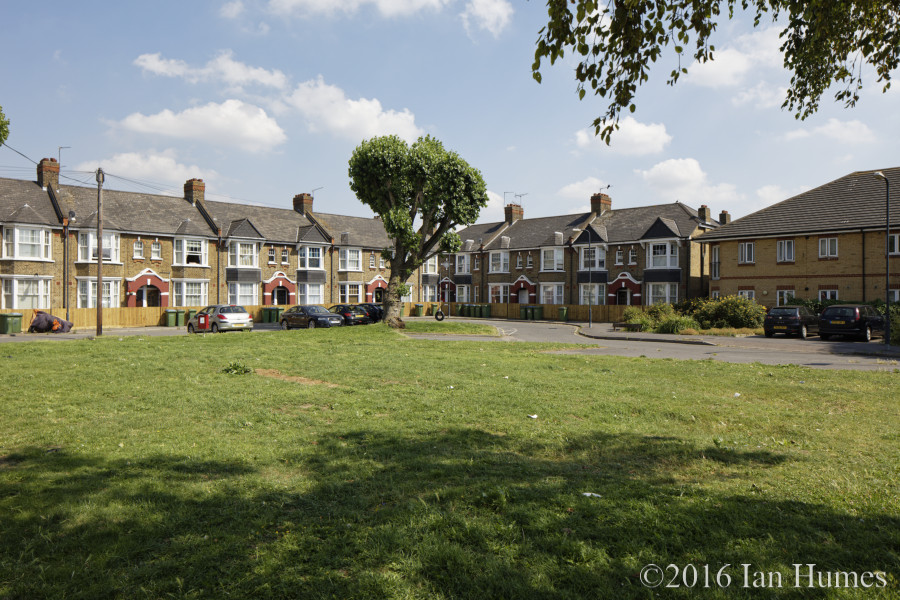

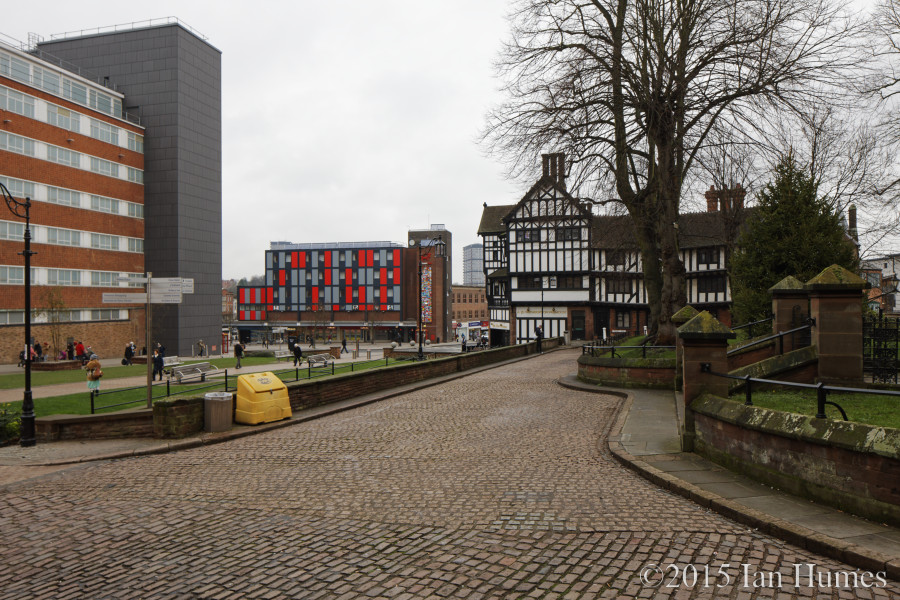

Here are some examples of completed Verified Views

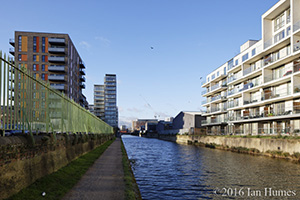

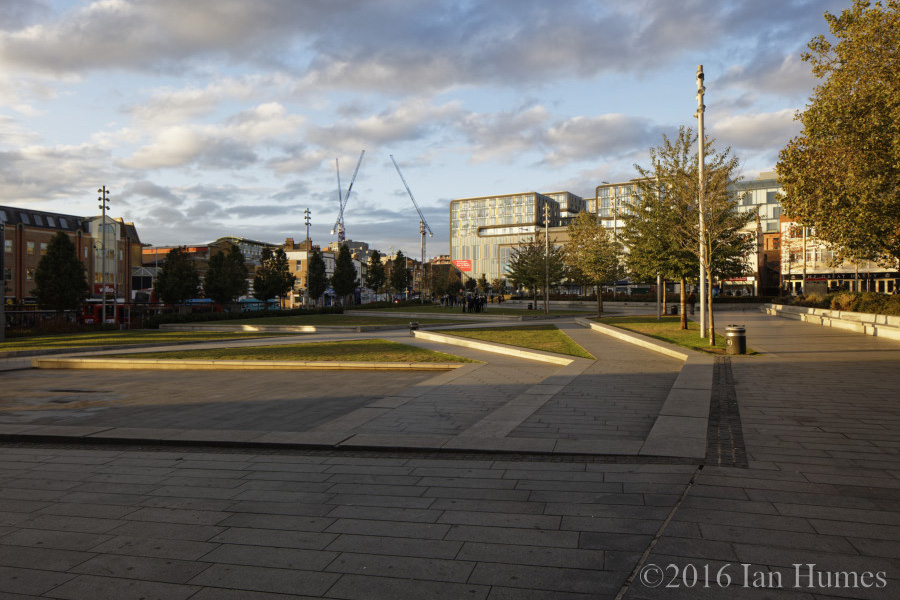

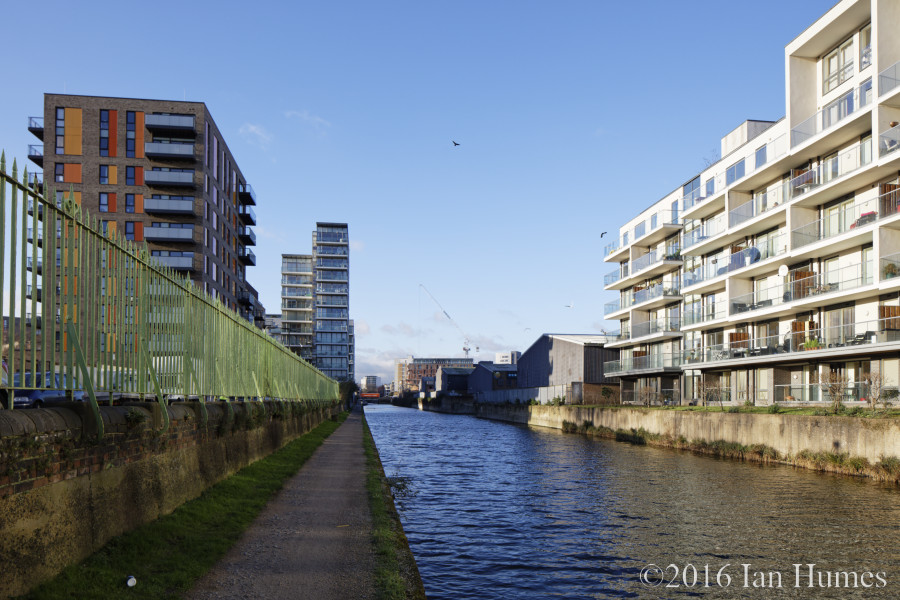

Existing & Proposed Images

The "London View Management Framework" has the following to say regarding Verified Views/AVR's.

"By accurately combining an image of a proposed development with a representation of its existing context, all AVRs explain the location and massing of a proposed development. They may also illustrate additional properties including the degree of visibility, architectural form or choice of materials selected. In their most sophisticated form they give a very useful impression of how a completed development would look in its environment under specific lighting and weather conditions. When complex AVRs are requested, more time is required and therefore costs rise. For this reason the assessors of a project should be careful to only request AVRs of a type which show the properties which need to be assessed from a specific location. To assist agreement between all parties prior to AVR preparation, the following classification types are presented to broadly define the purpose of an AVR in terms of the visual properties it represents. This classification is a cumulative scale in which each level incorporates all the properties of the previous.

AVR Level 0 : Location and size of proposal.
AVR Level 1 : Location, size and degree of visibility of proposal.
AVR Level 2 : as level 1 + description of architectural form.
AVR Level 3 : as level 2 + use of materials."

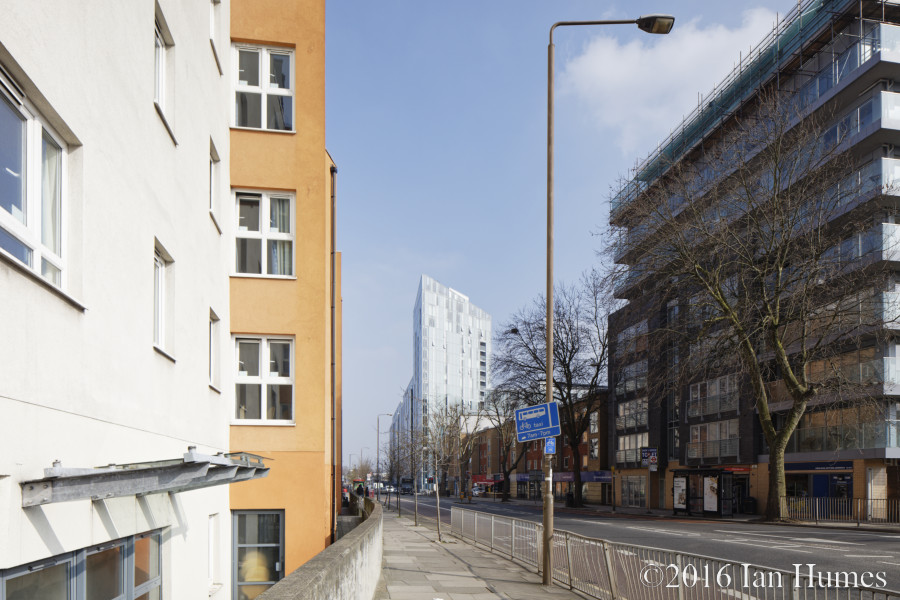

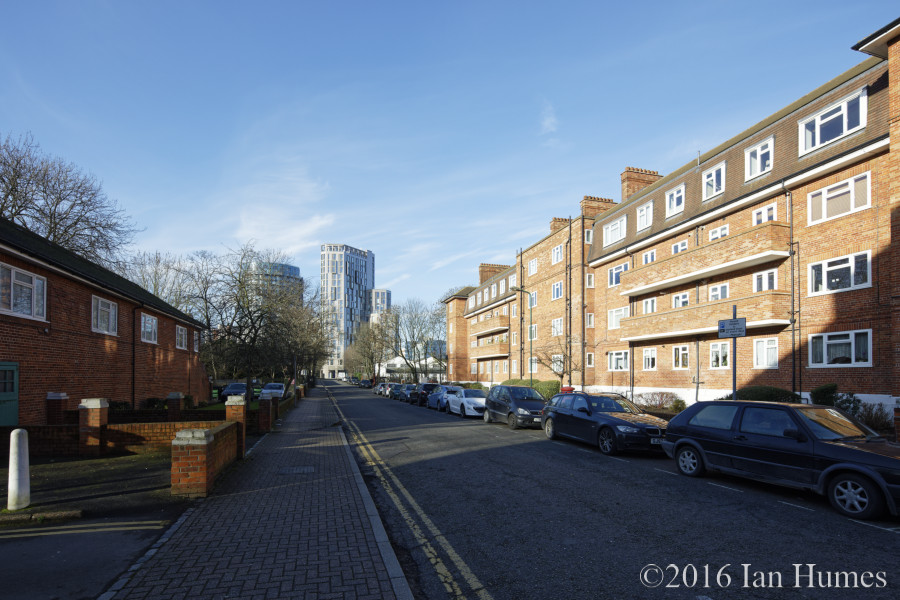

Please find below examples of the different levels of AVR.

AVR Levels
